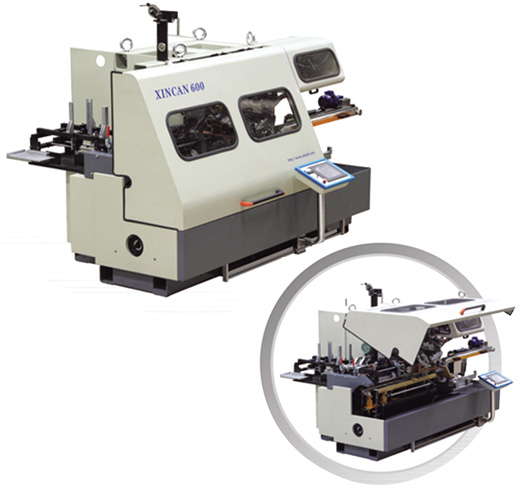

Automatic Canbody WeLder
- Model: XINCAN 600
- Size: 3400×2400×2400mm
- Weight: 5000kg
- Update: 2021-3-27
- Features:
1.Depends on can size and material quality.
2.Available Options: Oxide-free weld seam, Additional metallic cover.
3.Specifications are subject to change without notification.
DETAILED:
Product Parameters:
● Welding speed[m/min.]：Max.66m/Min
● Production speed[pcs/min.]：Max.550個(gè)/Min
● Applicable diameter[mm]：52-153mm
● Applicable height[mm]：70-320mm
● Raw Material: Tinplate
● Tin Coating: 5#-100#
● Sheet Hardness: T2.5-DR8, DR8 Thickness is greater than 0.2mm
● Sheet Thickness: 0.16-0.31mm
● Copper Wire: 1.24-1.38mm
● Overlap: 0.35-0.5mm
● Welding Distance: 0.6-1.1mm
● Cooling Water: 8-10℃，5-6kg/cm2，20L/Min
● Compressed Air: 5-6kg/cm2，800L/Min
